Container Dimensions / Capacity management

The dimensions shown below are for guidance only since individual containers can vary slightly. Please always refer to the right-hand container door for the precise specifications. For the sake of good order, we reserves the right to substitute any containers with the alternative without prior notice. Please contact the assigned sales person in charge in order to confirm the required specification before picking up containers.

Dry Cargo Container Refrigerated Container

20' Steel Dry Cargo Container
40' Steel Dry Cargo Container
40' Hi-Cube Steel Dry Cargo Container
45' Hi-Cube Steel Dry Cargo Container

20' M.G.S.S. Refrigerated Container
20' Aluminum Refrigerated Container
40' M.G.S.S. Hi-Cube Refrigerated Container
40' Hi-Cube Aluminum Refrigerated Container

Special Container

20' Full Height Open Top Container
20' Flat Rack Container with Four Freestanding Posts
20' Flat Rack Container with Collapsible End
20' Fuel Tank Container
20' Power Pack Generator Container
40' Flat Rack Container with Four Freestanding Posts
40' Flat Rack Container with Collapsible End
40' Full Height Open Top Container
40' Hi-Cube Hanger Container

Dry Cargo Container

20' Steel Dry Cargo Container

Exterior 20sd
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'-4 13/16" 7'-8 19/32" 7'-9 57/64"
5.898 m 2.352 m 2.385 m
Weight Door Opening
MGW TARE NET Width Height
52,910 lb 5,140 lb 47,770 lb 7'-8 1/8" 7'-5 3/4"
67,200 lb 5,290 lb 61,910 lb 2.343 m 2.280 m
24,000 kg 2,330 kg 21,670 kg CU.M CU.FT
30,480 kg 2,400 kg 28,080 kg 33.1 1,169
Purpose
1.Captioned units(MGW 30,480 KG) can be coordinated from EMCU 3204073 and EISU 3568118.
2.Used for all kinds of general cargo.

40' Steel Dry Cargo Container

Exterior 40sd
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
39'-5 45/64" 7'-8 19/32" 7'-9 57/64"
12.032 m 2.352 m 2.385 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 8,820 lb 58,380 lb 7'-8 1/8" 7'-5 3/4"
2.343 m 2.280 m
30,480 kg 4,000 kg 26,480 kg CU.M CU.FT
67.5 2,385
Purpose
Used for all kinds of general cargo.

40' Hi-Cube Steel Dry Cargo Container

Exterior 40sh
Length Width Height
40'-0" 8'-0" 9'-6"
12.192 m 2.438 m 2.896 m
Interior
Length Width Height
39'-5 45/64" 7'-8 19/32" 8'-9 15/16"
12.032 m 2.352 m 2.69 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 9,260 lb 57,940 lb 7'-8 1/8" 8'-5 49/64"
2.343 m 2.585 m
30,480 kg 4,200 kg 26,280 kg CU.M CU.FT
76.2 2,690
Purpose
Used for all kinds of general cargo.

45' Hi-Cube Steel Dry Cargo Container

Exterior 45sh
Length Width Height
45'-0" 8'-0" 9'-6"
13.716 m 2.438 m 2.896 m
Interior
Length Width Height
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64''
13.556 m 2.352 m 2.698 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 10,580 lb 56,620 lb 7'-8 1/8" 8'-5 3/4"
2.340 m 2.585 m
30,480 kg 4,800 kg 25,680 kg CU.M CU.FT
86.1 3,040
Purpose
Used for all kinds of general cargo.

Exterior 45sh
Length Width Height
45'-0" 8'-0" 9'-6"
13.716 m 2.438 m 2.896 m
Interior
Length Width Height
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64''
13.556 m 2.352 m 2.698 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 10,858 lb 56,342 lb 7'-8 1/8" 8'-5 3/4"
2.340 m 2.585 m
30,480 kg 4,870 kg 25,610 kg CU.M CU.FT
86 3,040
Purpose
Captioned units can be coordinated from EISU 804001~EISU 804500 and EMCU 801001~EMCU 80250.

Exterior 45sh
Length Width Height
45'-0" 8'-0" 9'-6"
13.716 m 2.438 m 2.896 m
Interior
Length Width Height
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64''
13.556 m 2.352 m 2.698 m
Weight Door Opening
MGW TARE NET Width Height
71,650 lb 10,360 lb 61,290 lb 7'-8" 8'-6"
2.340 m 2.585 m
32,500 kg 4,700 kg 27,800 kg CU.M CU.FT
86 3,040
Purpose
Captioned units can be coordinated from EISU 802001~EISU 804000.


Refrigerated Container

20' M.G.S.S. Refrigerated Container

Exterior 20reefer
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'- 17/32" 7'-6 15/32" 7'-5 39/54"
5.500 m 2.298 m 2.276 m
Nominal Weight
Cubic Capacity MGW TARE
1,016 cu.ft. 67,180 lb 6,700 lb
28.8 cu.m. 30,480 kg 3,020 kg
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C
10,550(9,073)/2(35)
6,150(5,289)/-18(0)		 0-142 0-240 CARRIER
69NT40-551-501		 +-0.25C

20' Aluminum Refrigerated Container

Exterior 20reefer
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
17'-0" 7'-6" 7'-3"
5.480 m 2.286 m 2.235 m
Nominal Weight
Cubic Capacity MGW TARE
989 cu.ft. 52,800 lb 6,170 lb
28 cu.m. 24,000 kg 2,800 kg
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C

40' M.G.S.S. Hi-Cube Refrigerated Container

Exterior 40reefer
Length Width Height
40'-0" 8'-0" 9'-6"
12.192 m 2.438 m 2.896 m
Interior
Length Width Height
37'-11 55/64" 7'-6 15/32" 8'-4 5/32"
11.585 m 2.290 m 2.544 m
Nominal Weight
Cubic Capacity MGW TARE
2,384 cu.ft. 74,960 lb 10,490 lb
67.5 cu.m. 34,000 kg 4,760 kg
Cooling capacity Air exchange rate Type Temp.
control precision
w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE16-2BAIIIEV		 +-0.25C
10,550(9,073)/2(35)
6,150(5,289)/-18(0)		 0-142 0-240 CARRIER
69NT40-551-501		 +-0.25C

40' Hi-Cube Aluminum Refrigerated Container


Special Container

20' Full Height Open Top Container

Exterior 20fhot2
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'-4" 7'-8 1/2" 7'-8 1/8"
5.898 m 2.352 m 2.342 m
Weight
MGW TARE NET
44,800 lb 4,850 lb 39,950 lb
20,320 kg 2,200 kg 18,120 kg
CU.M CU.FT
32.5 1,148
Purpose
Captioned units can be coordinated from UGMU 490001~UGMU 490150, EMCU 460261~EMUC 460520 and
EISU 460001~EISU 460400.

20 ' Flat Rack Container with Four Freestanding Posts

Exterior 20fccn
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'-6 7/16" 6'-7 59/64" 6'-9 39/64"
5.650 m 2.030 m 2.073 m
Weight
MGW TARE NET
66,140 lb 6,150 lb 59,990 lb
30,000 kg 2,790 kg 27,210 kg
Purpose
Captioned units can be coordinated from EMCU 760321~EMCU 760520.

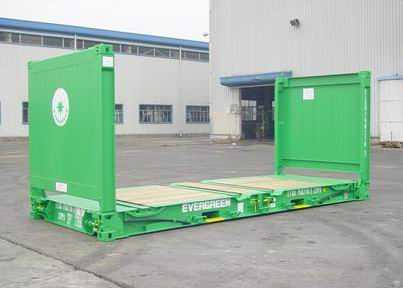

20' Flat Rack Container with Collapsible End

Exterior 20fccn
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
18'-5 62/64" 7'-3 46/64" 7'-3 59/64"
5.638 m 2.228 m 2.233 m
Weight
MGW TARE NET
74,950 lb 6,370 lb 68,580 lb
34,000 kg 2,890 kg 31,110 kg
Purpose
Captioned units can be coordinated from EISU 750000 to EISU 750300.

20' Fuel Tank Container

Exterior 40fhot1
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Weight
MGW TARE NET
36,000 kg 3,385 kg 32,615 kg
Capacity Design Temp.
24,000 litres -20°C to 130°C
Purpose
Captioned units can be coordinated from EISU 8010010 to EISU 8010453, and
are need for power pack generators equipped on group vessels, not for export or import purpose.

20' Power Pack Generator Container

Exterior 40fhot1
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
Length Width Height
19'-4 13/16" 7'-8 19/32" 7'-9 57/64"
5.898 m 2.352 m 2.385 m
Weight
MGW TARE MACHINE
8,500 kg 2,400 kg 6,100 kg
Power Supply Socket
450 kw 40
Purpose
Captioned units can be coordinated from EMCU 0000013 to EMCU 0000409.

40' Flat Rack Container with Four Freestanding Posts

Exterior 40fccn
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
38'-7 15/16" 6'-7 59/64" 6'-4 1/2"
11.784 m 2.030 m 1.943 m
Weight
MGW TARE NET
99,210 lb 11,908 lb 87,302 lb
45,000 kg 5,400 kg 39,600 kg
Purpose
Captioned units can be coordinated from UGMU 707001~UGMU 707050; EMCU 700251~EMCU 700450.

40' Flat Rack Container with Collapsible End

Exterior 40fccn
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
38'-7 39/64" 7'-3 46/64" 6'-4 61/64"
11.776 m 2.228 m 1.955 m
Weight
MGW TARE NET
99,210 lb 10,140 lb 89,070 lb
45,000 kg 4,600 kg 40,400 kg
Purpose
Captioned units can be coordinated from EISU 710000~EISU 710500, EMCU 700451~EMCU 700650

40' Full Height Open Top Container

Exterior 40fhop
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
Length Width Height
39'-5" 7'-8 1/2" 7'-8 1/8"
12.034 m 2.352 m 2.330 m
Weight
MGW TARE NET
67,200 lb 9,040 lb 58,160 lb
30,480 kg 4,100 kg 26,380 kg
CU.M CU.FT
65.9 2,327
Purpose
Captioned units can be coordinated from EMCU 400362~EMCU 400810,
UGMU 407001~UGMU 407050 and EISU 400001~EISU 400600.

40' Hi-Cube Hanger Container

Exterior 40sh
Length Width Height
40'-0" 8'-0" 9'-6"
12.19 m 2.44 m 2.90 m
Interior
Length Width Height
39'-5 45/64" 7'-8 19/32" 8'-9 15/16"
12.03 m 2.35 m 2.69 m
Weight Door Opening
MGW TARE NET Width Height
67,200 lb 9,172 lb 58,028 lb 7'-8 1/8" 8'-5 49/64"
30,480 kg 4,200 kg 26,280 kg 2.343 m 2.585 m
Purpose
Used for all kinds of garment.
